A New Valving/Injector Configuration For Small Pulsejets
The limited life of traditional pulsejet engines has always been a problem.

As detailed here, there are several modes of failure associated withe the reedvalves but the single most critical factor in obtaining longer life out of valves is the temperature at which they operate.

In a regular petal-valve engine, the valves often suffer quite significant heating and may even glow red hot in some cases. This obviously affects the temper of the spring steel and significantly weakens them -- thus making the the constant hammering against the valve-head even more damaging.

The heat applied to a petal type reed valve generally comes from two sources:

  1. direct contact with combustion gases that curl around the edge of the valve retainer plate.
  2. combustion heat that is conducted through the valve retainer plate when the valves are open.
The Blast Ring I developed for the PJ8 and PJ15 engines does a good job of reducing the heat damage to valves but it also tends to reduce the power output of the engine. The ideal solution would provide protection without penalty -- and that's where my new design comes in.

The new system actually produces a power increase while simultaneously providing even better protection against heat damage than the Blast Ring.

By replacing the valve-retainer with two stainless steel disks that are separated by a small gap, the amount of heat transfered from the combustion chamber to the valves is dramatically reduced.

Because these disks are also dished in shape, with the curve facing towards the rear of the engine, they also act like a simple valvular conduit and thus significantly reduce the flow of hot gas from the combustion chamber towards the valves.

Finally, the fuel is injected into the engine between these two dished disks which means that it provides a cooling effect.

This system also allows the direct injection of liquid fuels at relatively low pressure. As it enters the gap between the two disks, the liquid is instantly flashed into vapor which then exits around the periphery of the disks -- thus eliminating the need for a spray nozzle and high pressure (100psi+) fuel pump.

Gaseous fuels such as propane can still be used perfectly well with this setup and, although the cooling effect isn't as great as with a liquid fuel, it is still significant.

The final benefit of this system is that the fuel vapor is mixed very thoroughly with the incoming airflow as that air passes over the gap between the two disks. This excellent mixing, and the turbulation produced, results in a far more even air/fuel mixture inside the combustion chamber -- and that means more power and better fuel-efficiency.

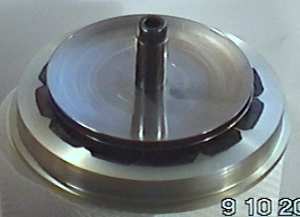

As promised, I've finally got some pictures of this setup as I've implemented it on my PJ15 design.

The 0.65mm stainless steel disks were spun up on my homemade metal spinning lathe and the new fuel jet is also turned from stainless steel with 10 cross-drilled holes to feed the fuel between the two disks.

So far, most of the testing has been done with propane but I intend to spend more time conducting tests with methanol and gasoline in the near future.


Here is the gas-fuel jet showing the fuel outlet holes. The large hole to the right serves no purpose other than to take a torque bar that is used to tighten the assembly down so that the valves and first disk are held firmly against the valve-head.

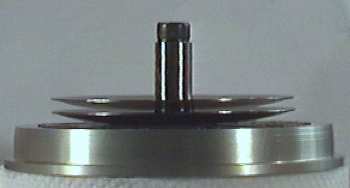

The stainless steel sleeve you see in the first two pictures secures the rear disk and is held tight by way of a 6mm cap-head screw.
